CU XLPE Electric cable
CU XLPE Electric cable
ALSECURE®

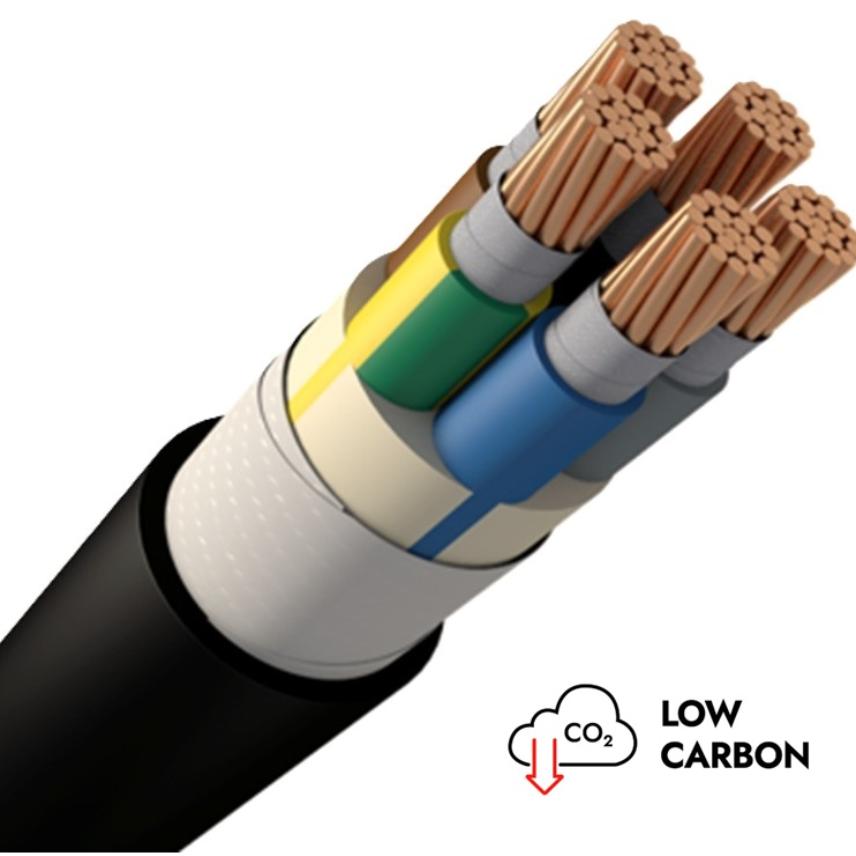

Multi-core, single or multi-wire copper conductor power cables that are halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire. This cable type is ideal for general power supply and distribution in indoor applications. This is where the “Recycling, Circular Economy & Low-Carbon Products” begins.
Read moreCU/XLPE/LSOH 0.6/1kV 1×25
Nexans ref.
- Packaging: m
- Conductor shape: Circular stranded (RM)
- Material of filler / inner sheath: Without
- Neutral conductor section (when smaller): - mm²
- Nominal conductor diameter: 6 mm
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.4 mm
- Bending factor when laying: 20 (xD)
- Fire retardant: EN IEC 60332-3-24 (cat C)
- Halogen free: EN 60754-2
CU/XLPE/LSOH 0.6/1kV 4×120
Nexans ref. 3031286304195
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 120 mm²
- Nominal conductor diameter: 12.3 mm
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×150
Nexans ref. 3031286304196
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 150 mm²
- Nominal conductor diameter: 13.9 mm
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×185
Nexans ref. 3031286304197
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 185 mm²
- Nominal conductor diameter: 15.3 mm
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×240
Nexans ref. 3031286304198
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 240 mm²
- Nominal conductor diameter: 17.2 mm
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×300
Nexans ref. 3031286304199
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 300 mm²
- Nominal conductor diameter: 19.6 mm
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×35
Nexans ref. 3031286304191
- Packaging: m
- Conductor shape: Circular stranded (RM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 35 mm²
- Nominal conductor diameter: 7 mm
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC/EN 60332-3-24
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×400
Nexans ref. 3031286304200
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 400 mm²
- Nominal conductor diameter: 22.2 mm
- Nominal insulation thickness: 2.0 mm
- Nominal outer sheath thickness: 3.3 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×50
Nexans ref. 3031286304192
- Packaging: m
- Conductor shape: Circular stranded (RM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 50 mm²
- Nominal conductor diameter: 8.3 mm
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×70
Nexans ref. 3031286304193
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 70 mm²
- Nominal conductor diameter: 9.1 mm
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
CU/XLPE/LSOH 0.6/1kV 4×95
Nexans ref. 3031286304194
- Packaging: m
- Conductor shape: Sector-shaped stranded (SM)
- Material of filler / inner sheath: Yes
- Neutral conductor section (when smaller): 95 mm²
- Nominal conductor diameter: 11.1 mm
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Bending factor when laying: 15 (xD)
- Fire retardant: IEC 60332-3-24 (cat C)
- Halogen free: IEC 60754-2
Description
Description
Standards
-
Product2014/68/EU; EN 50575; IEC 60502-1
-
TestIEC 60332-3-22; IEC 60332-3-23; IEC 60332-3-24 Cat.C; IEC 60754-1; IEC 60754-2; IEC 61034
Application
For used in power transmission and distribution system.
They are mainly used in populated density area indoor applicationsin and public places with fire risk (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices etc.) as well as electrical panels and control panels.
They are also well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…)
Construction
Conductor
Plain annealed copper conductor in accordance with IEC 60228,recycled copper.
Insulation
Extruded XLPE compound complied with IEC 60502-1
Identification:
- 1 core : Nature
- 2 cores Brown, Blue
- 3 cores Brown, Black,Grey
- 4 cores: Brown , Black, Grey, Blue
- 3 cores: Brown, Blue, Green/Yellow
- 4 cores: Brown , Black, Grey, yellow/green
- 5 cores: Brow n , Black, Grey, Blue, Yellow/Green
- Above 5C: White insulation with black numbers
Assembly and filler(if required)
The interstices between cores filled with non hygroscopic polypropylene yarn to form substantially circular shape with a suitable binder
Over sheath
Halogen Free Flame retardant HFFR/LSOH/LSZH polyolefin
Color: Black
Features
UV resistance ,UL 1581 Sect.1200 Upon request
Oil resistance 70℃ 4 h Upon request
Anti termite and rodent Upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Fire safety characteristics
Fire safety characteristics
Resources
Resources
Selling & delivery Information
Cable marking
Inkjet print
NEXANS CU/XLPE/LSOH 0.6/1kV N
S Nonminal cross sectional area
YYYY year of manufacture
***** M Continuous sequencial meter marking
