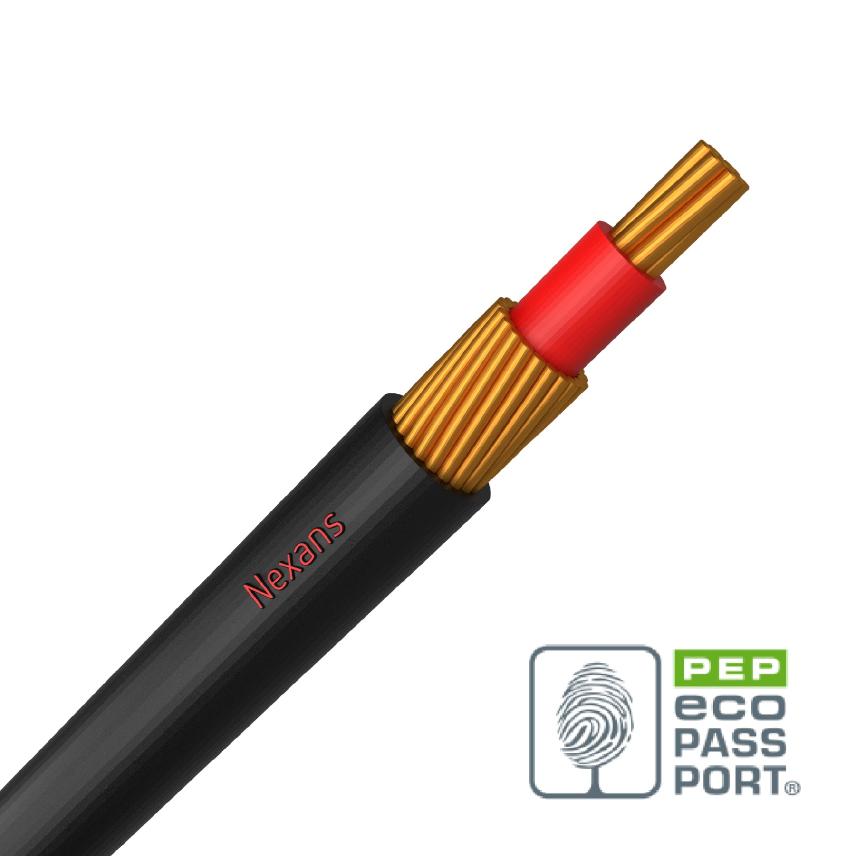

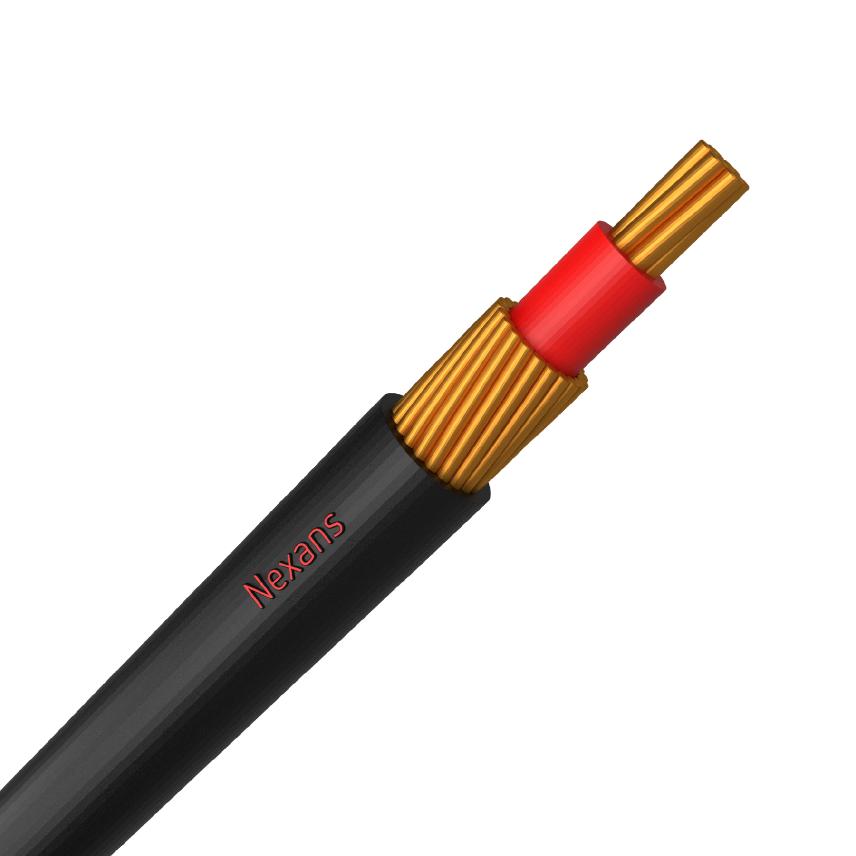

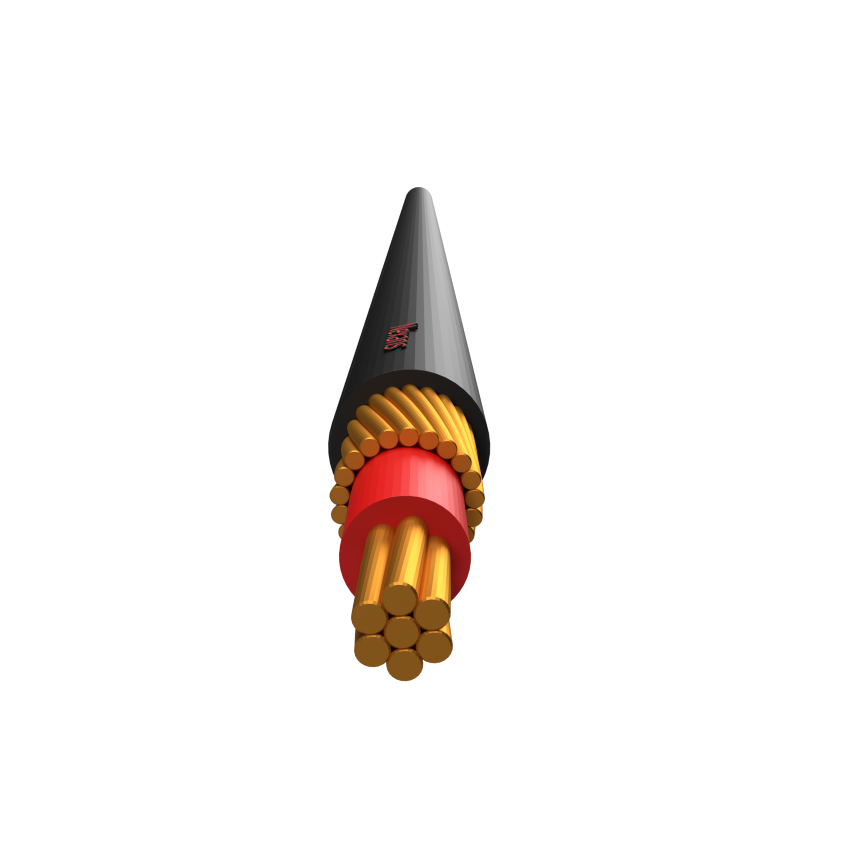

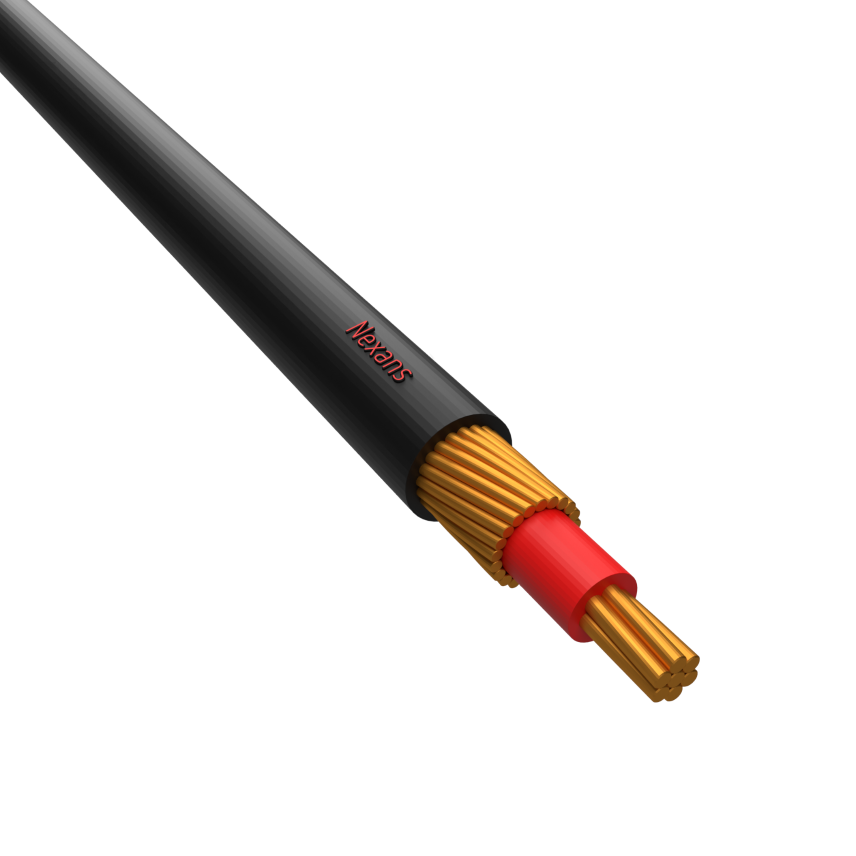

单芯、两芯 PVC 中性线屏蔽电缆
CU NSCRN 1X 4 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 4 mm²
- Nominal overall diameter: 12.5 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.24 kg/m
CU NSCRN 1X 6 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 6 mm²
- Nominal overall diameter: 13.0 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.28 kg/m
CU NSCRN 1X 10 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 10 mm²
- Nominal overall diameter: 14.2 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.38 kg/m
CU NSCRN 1X 16 3.2
Nexans ref. BAGP15PX001CXRD
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 16 mm²
- Nominal overall diameter: 15.9 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.51 kg/m
CU NSCRN 1X 16 3.2 100M
Nexans ref. BAGP15P1001CXRD
- 引示线: 无
- 芯线数: 1
- 导线截面: 16 mm²
- Nominal overall diameter: 15.9 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.51 kg/m
CU NSCRN 1X 16 3.2 250M
Nexans ref. BAGP15PX301CXRD
- 引示线: 无
- 芯线数: 1
- 导线截面: 16 mm²
- Nominal overall diameter: 15.9 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.51 kg/m
CU NSCRN 1X 16 3.2 500M
Nexans ref. BAGP15PX501CXRD
- 引示线: 无
- 芯线数: 1
- 导线截面: 16 mm²
- Nominal overall diameter: 15.9 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.51 kg/m
CU NSCRN 1X 16+4P 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 4 mm²
- 芯线数: 1
- 导线截面: 16 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 15.5 x 22.5
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.67 kg/m
CU NSCRN 1X 25 3.2
Nexans ref. BAGP16PX001CXRD
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 25 mm²
- Nominal overall diameter: 18.2 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.74 kg/m
CU NSCRN 1X 25 3.2 250M
Nexans ref. BAGP16PX301CXRD
- 引示线: 无
- 芯线数: 1
- 导线截面: 25 mm²
- Nominal overall diameter: 18.2 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.74 kg/m
CU NSCRN 1X 25 3.2 500M
Nexans ref. BAGP16PX501CXRD
- 引示线: 无
- 芯线数: 1
- 导线截面: 25 mm²
- Nominal overall diameter: 18.2 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.74 kg/m
CU NSCRN 1X 25+4P 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 4 mm²
- 芯线数: 1
- 导线截面: 25 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 17.6 x 26.4
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.94 kg/m
CU NSCRN 1X 35 3.2
Nexans ref. BAGP18PX001CXRD
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 35 mm²
- Nominal overall diameter: 19.4 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.96 kg/m
CU NSCRN 1X 50 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 1
- 导线截面: 50 mm²
- Nominal overall diameter: 21.8 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 1.22 kg/m
CU NSCRN 2X 2.5 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 2.5 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 11.5 x 15.3
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.28 kg/m
CU NSCRN 2X 4 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 4 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 12.5 x 17.1
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.35 kg/m
CU NSCRN 2X 4 3.2
Nexans ref.
- 引示线: 无
- 芯线数: 2
- 导线截面: 4 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 12.5 x 17.1
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.35 kg/m
CU NSCRN 2X 4 1.8
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 4 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 9.6 x 14.2
- Nominal outer sheath thickness: 1.8 mm
- 近似重量: 0.26 kg/m
CU NSCRN 2X 6 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 6 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 13.0 x 18.3
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.42 kg/m
CU NSCRN 2X 6 3.2 250M
Nexans ref. DAEP11PX302CXAB
- 引示线: 无
- 芯线数: 2
- 导线截面: 6 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 13.0 x 18.3
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.42 kg/m
CU NSCRN 2X 6 3.2 5HM
Nexans ref. DAEP11PX502CXAB
- 引示线: 无
- 芯线数: 2
- 导线截面: 6 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 13.0 x 18.3
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.42 kg/m
CU NSCRN 2X 10 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 10 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 14.1 x 20.1
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.56 kg/m
CU NSCRN 2X 16 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 16 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 15.5 x 22.5
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.76 kg/m
CU NSCRN 2X 16 3.2 250M
Nexans ref. DAEP15PX302CXAB
- 引示线: 无
- 芯线数: 2
- 导线截面: 16 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 15.5 x 22.5
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.76 kg/m
CU NSCRN 2X 16+4P 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 4 mm²
- 芯线数: 2
- 导线截面: 16 mm²
- Nominal overall diameter: 23.4 mm
- Nominal overall diameter: -
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.92 kg/m
CU NSCRN 2X 2.5 3.2 250M
Nexans ref. DAEP07PX302CXAB
- 引示线: 无
- 芯线数: 2
- 导线截面: 2.5 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 11.5 x 15.3
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.28 kg/m
CU NSCRN 2X 2.5 3.2 5HM
Nexans ref. DAEP07PX502CXAB
- 引示线: 无
- 芯线数: 2
- 导线截面: 2.5 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 11.5 x 15.3
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 0.28 kg/m
CU NSCRN 2X 2.5 1.8 5HM
Nexans ref. DAEP07A5002CXAB
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 2.5 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter:
- Nominal outer sheath thickness: 1.8 mm
- 近似重量: 0.21 kg/m
CU NSCRN 2X 25 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 25 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 17.6 x 26.4
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 1.1 kg/m
CU NSCRN 2X 35 3.2
Nexans ref.
- 包装: Cut to length (米)
- 引示线: 无
- 芯线数: 2
- 导线截面: 35 mm²
- Nominal overall diameter: - mm
- Nominal overall diameter: 18.8 x 28.9
- Nominal outer sheath thickness: 3.2 mm
- 近似重量: 1.4 kg/m
Description
Description
Standards
-
ProductAS/NZS 4961; AS/NZS 5000.1
应用场景
适用于工业、商业及民用领域。
可在各类场景中输送电力，如从电网至建筑物、设备，配电柜至主控柜、楼宇及楼层间主干线路、电缆柜至电机等场合。
Insulation Colours
| No. Cores | Insulation Colour |
| 1 | Red |
| 1 (plus pilot) | Red, Orange Pilot |
| 2 | Red, White |
| 2 (plus pilot) | Red, White, Orange Pilot |
Characteristics
Characteristics
结构特性
结构特性
导体材料
铜
导体类型
圆形，绞和
绝缘
聚氯乙烯
屏蔽
铜丝
外护套
聚氯乙烯
电气特性
电气特性
额定电压Uo/U
0.6/ 1 (1.2) kV
使用特性
使用特性
芯线最高静止温度
75 °C
